New

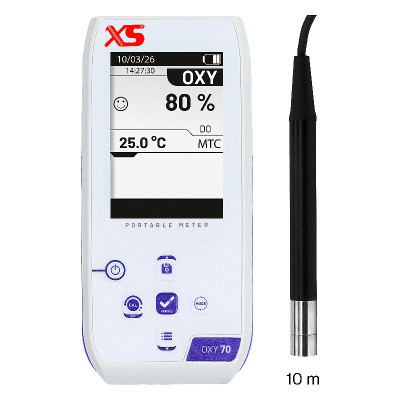

XS Oxy 70 NEX Portable Oxymeter - DO Optical sensor 10 m
Product Code: 50120922
View Product
XS Oxy 70 NEX Portable Oxymeter - DO Optical sensor 3 m
XS Oxy 70 NEX Portable Oxymeter - DO Optical sensor 3 m
NewXS Oxy 70 NEX Portable Oxymeter - DO Optical sensor 3 m
Features
High accuracy at low oxygen levels
High-definition, backlit TFT display
Maintenance-free optical sensor
Automatic DO calibration 0% - 100%
Automatic temperature and pressure compensation
Multiview screen for up to 4 parameters
Manual and automatic data logger, up to 1000 data points in GLP
5 different languages selectable
Sensor ID / User ID / Sample ID
Other Features
Ergonomic, watertight professional portable oximeter with innovative high-resolution backlit TFT display.
Powered by alkaline batteries (AA) or USB-C.
Measures dissolved oxygen, % saturation and barometric pressure with Multiview display option including temperature.
The online setup and calibration guide makes the device simple and easy to use.
Automatic DO calibration up to two points (0-100%).
Automatic temperature and barometric pressure compensation, manual salinity compensation (0...70 ppt).
Measurement stability indicator; option to select 3 stability levels (pH only).
MIN/MAX and HOLD alarm functions.
GLP functions: Date and time, calibration data display and calibration expiry setting with measurement lock.
Option to customise measured data (Sensor ID / User ID / Sample ID).
Password function.
Five different languages selectable (ENG - ITA - FRA - DEU - ESP).
Manual and automatic data logger with the option of downloading data to a PC via micro USB-C.
DataLink software can be downloaded free of charge from the website www.giorgiobormac.com.
Measurement Range
DO: 0.0...50 mg/l (0.01 / 0.1 mg/l)
Saturation: 0.0...600% (0.1 / 1 %)
Barometric pressure: 300...1100 mbar
Temperature: 0...100 °C (0.1°C)
Included Accessories
3 x 1.5 V (AA) alkaline batteries, optical sensor, zero oxygen standard, USB cable, user instructions and carrying case.
Documentation
Product Code
50120912
Category
Portable oximeters
- O2 saturation accuracy
- ±10%
- Accuracy (Temperature)
- ±0,5°C
- Battery supply
- 3 x 1,5 V (alkaline)
- Pressure automatic compensation
- Automatic
- Temperature compensation
- 0,0 ... +100,0
- PC Communication
- USB-C
- Warranty
- 3 years
- Inputs
- 1 x Multipin
- Selectable languages
- ENG - ITA - FRA - ESP - DEU
- Memory
- 1000 data, with date and time
- Parameters
- DO mg/l / DO % / P (mbar) / Temp
- Password
- Numeric (4 digits)
- Oxy Calibration points
- 1 or 2 (Automatic)
- Dissolved Oxygen measuring range
- 0,00 ... 50,0
- Barometric pressure measuring range
- 300 … 1100 mbar
- Salinity measuring range
- 0,1 ... 70 ppt
- O2 saturation measuring range
- 0,0 ... 199,9 % / 200 ... 600%
- Barometric pressure resolution
- 1 mbar
- O2 saturation resolution
- 0,1% / 1%
- Temperature resolution
- 0,1°C
- Calibration due with alarm
- Hours/Days with measurement lock
- DO Accuracy (10...20 mg/l-ppm)
- ±0,3%
- Hold
- Sì
- Barometric pressure accuracy
- 0,5%
- IP rating
- 65
- Auto off
- After 20 minutes
- DO Accuracy (< 10mg/l-ppm)
- ±0,2%
- DO Accuracy (>20 mg/l-ppm)
- ±5%
- Display
- Backlit TFT high-definition display
- Calibration data indication
- Cal points - Offset (%) - Efficiency (%) - Salinity (ppt) - Barometric pressure (mbar) - Temperature
- Buffer used indication
- Yes with value
- temperature measurement range
- -10 ... +110°C
- Entering identifiers
- ID Sample / ID User / ID Sensor
- Multiview
- Multiview up to 4 parameters
- Data storage modes
- Automatic or manual datalogger
